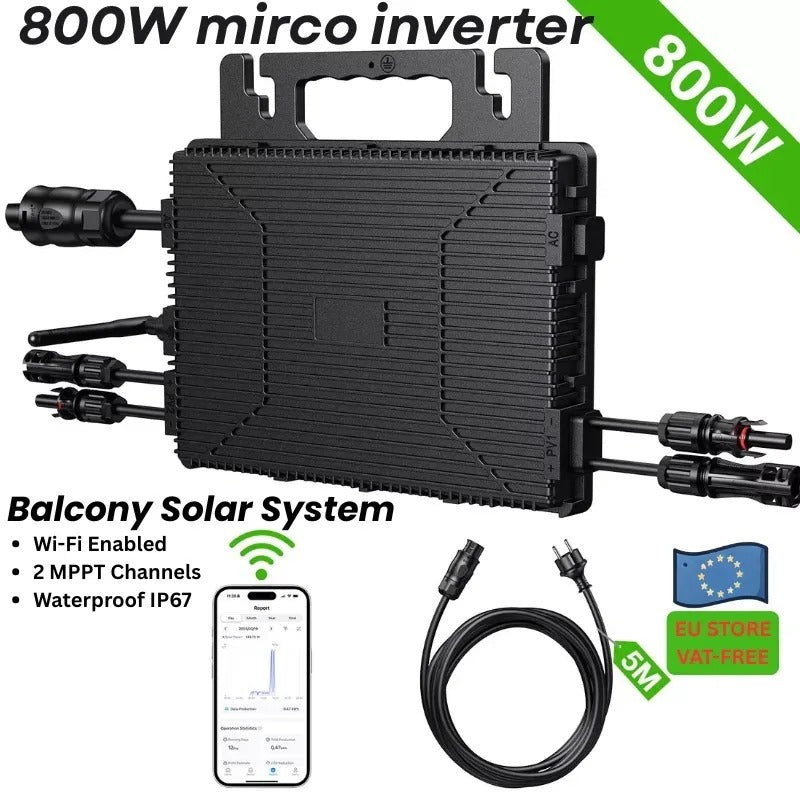

Shelfsun 800W Grid-Tie Micro Inverter | 2×MPPT, 230V AC, WiFi Monitoring, IP67, VDE4105 & EN50549 Certified
NATE-Volt 800 · Dual MPPT Micro Inverter
- 800W rated output, 96% peak efficiency
- Dual MPPT inputs, 25–55V range per panel
- 230V AC grid-tie output (184–253V), 50Hz
- Real-time WiFi monitoring via Solarman app & web
- IP67 die-cast housing, fanless natural cooling
Delivery in 2–5 business days across the EU · Dispatched from Germany
Engineered for Maximum Harvest
Dual MPPT, 96% Peak Efficiency
Two independent trackers run at up to 96% efficiency — mixed orientations and panel types never drag the array down.
Built for Balcony Systems
Compact 260×225×32mm, 2.9kg housing fits balconies and small rooftops; connect up to 4 units per branch circuit.
Real-Time WiFi Monitoring
Watch live output, daily yield and error codes from anywhere in the Solarman app and web platform.
IP67 · Fanless & Silent
Die-cast, dustproof and waterproof housing with natural convection cooling — no fans, zero maintenance.
Ships from Germany
Dispatched within 48 hours from our EU warehouse — no customs delays, VAT-friendly B2B invoicing.
Package Includes
Everything you need, in one box
- 1 × NATE 800W micro inverter (dual MPPT)
- 1 × AC output cable
- 2 × pairs of MC4 DC input connectors
- 1 × Quick-start guide & mounting hardware
Full Specifications
| Rated Output Power | 800W |
|---|---|
| MPPT Inputs | 2 × independent, 25–55V range |
| Max. Input Voltage | 60V DC |
| Max. Input Current | 13.5A × 2 |
| Recommended Panel Range | 280W – 550W per panel |
| Nominal AC Output | 230V, 50Hz |
| Output Voltage Range | 184 – 253V |
| Max. Output Current | 4A |
| Peak Efficiency | 96% |
| Static MPPT Efficiency | 99.5% |
| Night Power Consumption | < 50mW |
| Protection Rating | IP67 |
| Cooling | Fanless natural convection |
| Dimensions | 260 × 225 × 32mm |
| Weight | 2.9kg |
| Certifications | IEC62109-1/-2, IEC61000-6, VDE4105, VFR2019, NEN-EN 50549-1:2019 |
Specifications are measured under standard test conditions (STC).
Questions, Answered
What panels work with this inverter?
Any panel rated 280W–550W with working voltage (Vmp) in the 25–55V DC window. Each MPPT input takes one panel and different wattages can be mixed.
How many inverters can I connect together?
Up to 4 units per branch circuit, letting you scale a balcony or rooftop system from 800W up to 3.2kW.
Do I need a battery?
No — this is a grid-tie inverter: DC is converted straight into 230V AC and fed into your home circuit. Batteries only apply to off-grid hybrid systems.
How do I set up monitoring?
Scan the QR code on the unit in the free Solarman app, connect over WiFi, and view live output, generation totals and error codes remotely.
Is it certified for EU grid connection?
Yes — VDE4105, VFR2019 and NEN/PN-EN 50549-1:2019 certified.
