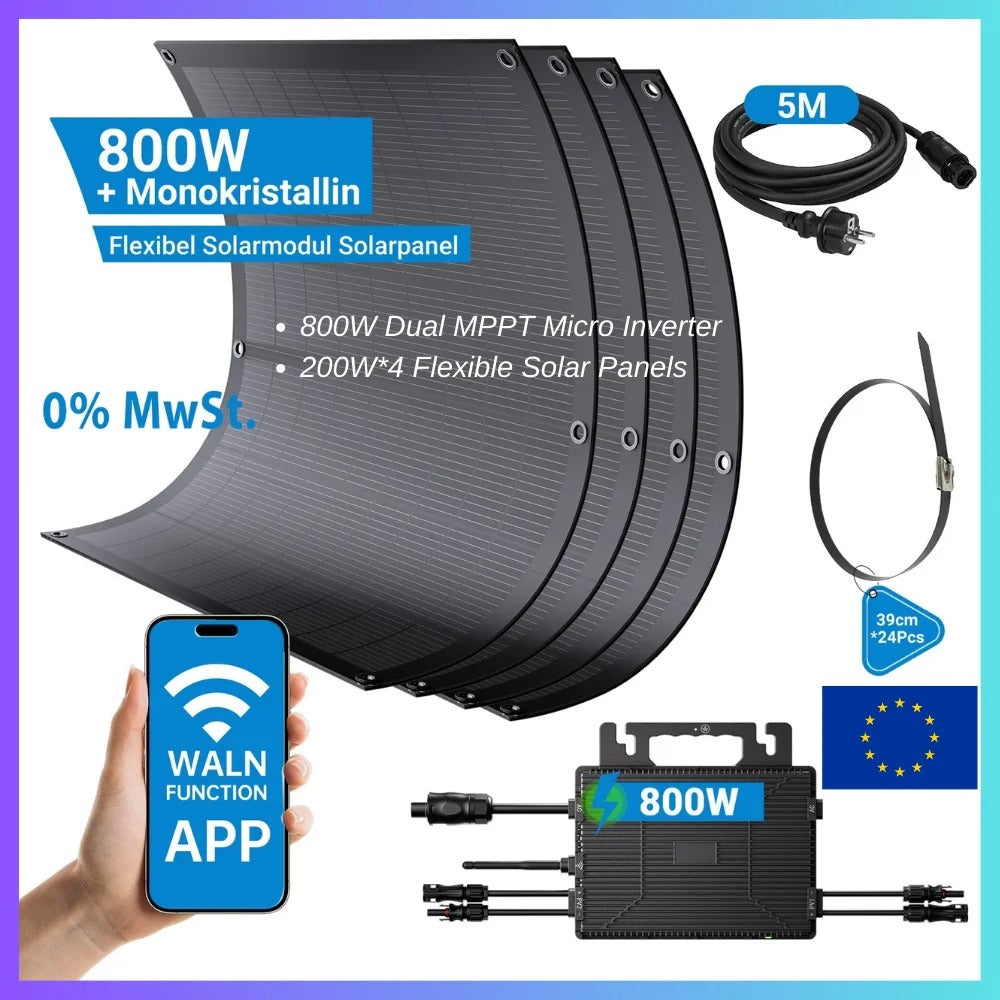

Shelfsun 800W Balcony Solar System | 4 × 200W Flexible Panels + 800W Micro Inverter, Plug & Play with WiFi Monitoring
NATE-Kit200 · LS-PV800Mi
- 4 × 200W flexible panels (≥23.5% efficiency) + 800W micro inverter
- Pre-wired, plug-and-play — no extra controller needed
- 800W inverter: dual MPPT, 96% peak efficiency
- IP67 panels & inverter, WiFi monitoring via Solarman
- 230V AC output with EU plug cable included
Delivery in 2–5 business days across the EU · Dispatched from Germany
Your Complete Balcony Power System
4 × 200W Flexible Panels
≥23.5% conversion efficiency with IP67 protection — 800Wp of clean power.
800W Micro Inverter
Dual MPPT, 96% peak efficiency, 230V AC grid-tie output.
WiFi Monitoring
Track live output, generation and errors in the Solarman app.
Plug & Play
Pre-wired with MC4 connectors — connect and start generating.
IP67 All-Weather
Panels and inverter sealed against rain, dust and heat.
Package Includes
Everything you need, in one box
- 4 × 200W flexible solar panels
- 1 × 800W micro inverter
- 1 × EU AC cable
- MC4 connectors & mounting kit
- 1 × installation manual
Full Specifications
| System Rated Power | 800W |
|---|---|
| Panel Rated Power | 200W each (×4) |
| Panel Efficiency | ≥ 23.5% |
| Panel Voc / Isc | 18.36V / 13.51A |
| Panel Vm / Im | 15.66V / 12.78A |
| Panel Dimensions | 1160 × 940 × 2.5mm |
| Panel Weight | 3.98kg each |
| Panel Certifications | CE, IEC, RoHS |
| Inverter MPPT | 2 × 25–55V |
| Inverter Peak Efficiency | 96% |
| Output Voltage | 230V AC, 50Hz |
| Monitoring | WiFi (Solarman) |
Specifications are measured under standard test conditions (STC).
Questions, Answered
Is this a complete kit?
Yes — four 200W panels, an 800W micro inverter, EU AC cable and all MC4 connectors. Plug and play.
How do I monitor generation?
Connect the inverter to WiFi and track live output in the Solarman app.
Do I need a battery?
No — the system is grid-tie and feeds 230V AC into your home circuit.
